diaedge
VQMHVRBD0300R050
Skip to product information

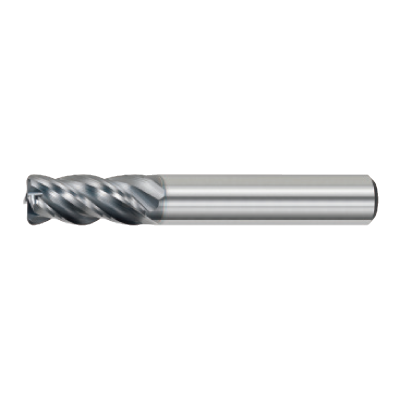

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

617553

ANSI

VQMHVRB/0.5RX3

ISO

VQMHVRBD0300R050

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

133

Regular price $54.01 USD
Regular price Sale price $54.01 USD
Sale

EDP

617553

ANSI

VQMHVRB/0.5RX3

ISO

VQMHVRBD0300R050

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information
VQMHVRBD0300R050
Coolant
External
Hand
Right

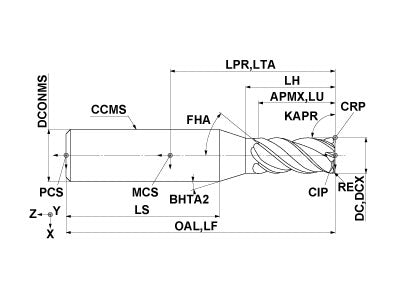

Unit: mm

DC
3
APMX
8
LU
8
LH
8.9
OAL
45
DCONMS
6
BHTA2
15
RE
0.5
FHA
40
ZEFP
4
ZEFF
4
VQMHVRBD0300R050

Unit: mm

DC
3
APMX
8
LU
8
LH
8.9
OAL
45
DCONMS
6
BHTA2
15
RE
0.5
FHA
40
ZEFP
4
ZEFF
4
