diaedge
VQMHVRBD0400R030
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

617570

ANSI

VQMHVRB/0.3RX4

ISO

VQMHVRBD0400R030

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

332

Regular price $76.13 USD
Regular price Sale price $76.13 USD
Sale

EDP

617570

ANSI

VQMHVRB/0.3RX4

ISO

VQMHVRBD0400R030

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information

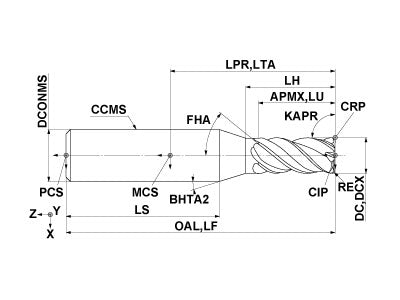

VQMHVRBD0400R030
Coolant
External
Hand
Right

Unit: mm

DC
4
APMX
11
LU
11
LH
12.2
OAL
45
DCONMS
6
BHTA2
15
RE
0.3
FHA
40
ZEFP
4
ZEFF
4
VQMHVRBD0400R030

Unit: mm

DC
4
APMX
11
LU
11
LH
12.2
OAL
45
DCONMS
6
BHTA2
15
RE
0.3
FHA
40
ZEFP
4
ZEFF
4
