VQMHVRBD0500R020
Skip to product information

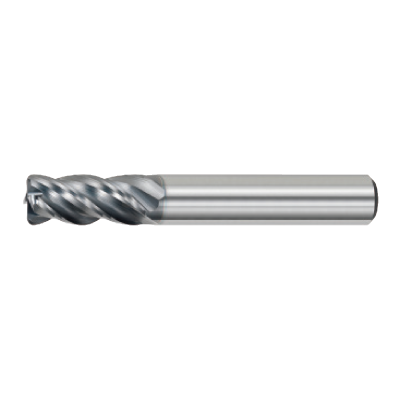

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

617596

ANSI

VQMHVRB/0.2RX5

ISO

VQMHVRBD0500R020

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

14

Regular price $88.43 USD
Regular price Sale price $88.43 USD
Sale

EDP

617596

ANSI

VQMHVRB/0.2RX5

ISO

VQMHVRBD0500R020

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

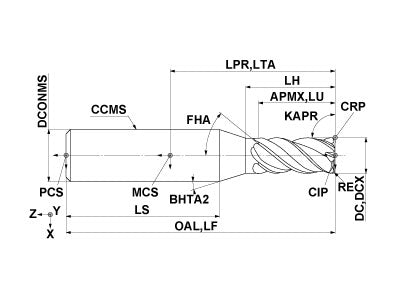

  • Drawings
  • Technical Information
VQMHVRBD0500R020
Coolant
External
Hand
Right

Unit: mm

DC
5
APMX
13
LU
13
LH
14.2
OAL
50
DCONMS
6
BHTA2
15
RE
0.2
FHA
40
ZEFP
4
ZEFF
4
VQMHVRBD0500R020

Unit: mm

DC
5
APMX
13
LU
13
LH
14.2
OAL
50
DCONMS
6
BHTA2
15
RE
0.2
FHA
40
ZEFP
4
ZEFF
4
