EDP
617781
ANSI
VQMHVRB/2RX12
ISO
VQMHVRBD1200R200
Stock
217
Price
Regular price
$232.96 USD
Regular price
Sale price
$232.96 USD
Unit price
/
per
EDP
617781
ANSI
VQMHVRB/2RX12
ISO
VQMHVRBD1200R200
Change the number in sums of 1s.
- Dimensions
- Features

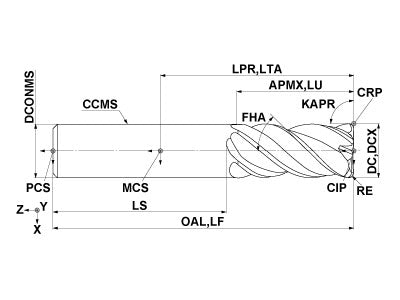

- Drawings
- Technical Information
Coolant
External
Hand
Right
Unit: mm
DC
12
APMX
26
LU
26
LH
26
OAL
75
DCONMS
12
RE
2
FHA
40
ZEFP
4
ZEFF
4
Unit: mm
DC
12
APMX
26
LU
26
LH
26
OAL
75
DCONMS
12
RE
2
FHA
40
ZEFP
4
ZEFF
4

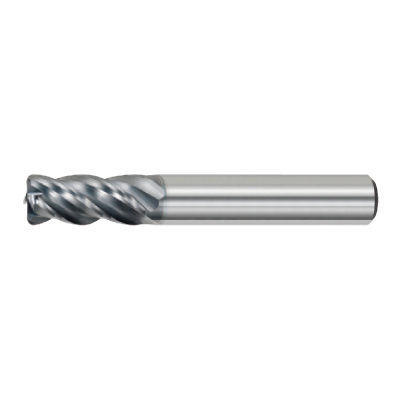

SMART MIRACLE irregular helix end mills for reduced vibration and for delivering a stable performance on difficult-to-cut materials and long overhang applications.
2D Model (DXF)
3D Model (STP)
