diaedge
VQMHVD0500
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

621464

ANSI

VQMHV/5

ISO

VQMHVD0500

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

208

Regular price $63.16 USD
Regular price Sale price $63.16 USD
Sale

EDP

621464

ANSI

VQMHV/5

ISO

VQMHVD0500

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

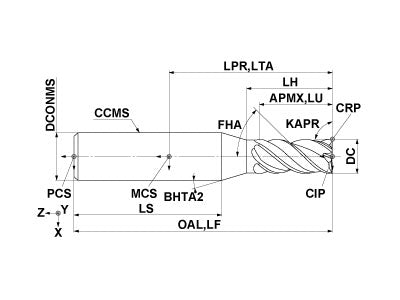

  • Drawings
  • Technical Information
VQMHVD0500
Coolant
External
Hand
Right

Unit: mm

DC
5
APMX
13
LU
13
LH
14.2
OAL
50
DCONMS
6
BHTA2
15
FHA
40
ZEFP
4
ZEFF
4
VQMHVD0500

Unit: mm

DC
5
APMX
13
LU
13
LH
14.2
OAL
50
DCONMS
6
BHTA2
15
FHA
40
ZEFP
4
ZEFF
4
