diaedge
VQMHVD0900
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

621501

ANSI

VQMHV/9

ISO

VQMHVD0900

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

19

Regular price $108.55 USD
Regular price Sale price $108.55 USD
Sale

EDP

621501

ANSI

VQMHV/9

ISO

VQMHVD0900

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

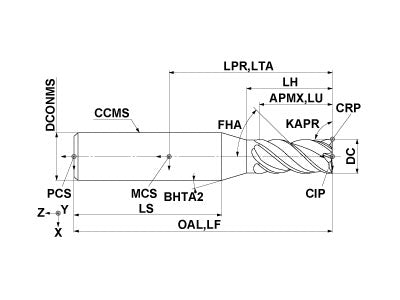

  • Drawings
  • Technical Information
VQMHVD0900
Coolant
External
Hand
Right

Unit: mm

DC
9
APMX
22
LU
22
LH
24.3
OAL
70
DCONMS
10
BHTA2
15
FHA
40
ZEFP
4
ZEFF
4
VQMHVD0900

Unit: mm

DC
9
APMX
22
LU
22
LH
24.3
OAL
70
DCONMS
10
BHTA2
15
FHA
40
ZEFP
4
ZEFF
4
