diaedge
VQMHZVD0160
Skip to product information

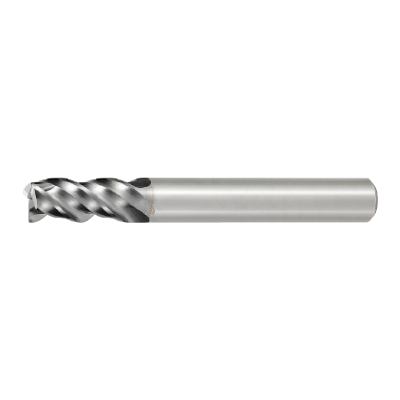

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

621667

ANSI

VQMHZV/1.6

ISO

VQMHZVD0160

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

495

Regular price $37.18 USD
Regular price Sale price $37.18 USD
Sale

EDP

621667

ANSI

VQMHZV/1.6

ISO

VQMHZVD0160

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information
VQMHZVD0160
Coolant
External
Hand
Right

Unit: mm

DC
1.6
APMX
3.2
LU
3.2
LH
3.6
OAL
45
DCONMS
4
BHTA2
15
FHA
45
ZEFP
3
ZEFF
3
VQMHZVD0160

Unit: mm

DC
1.6
APMX
3.2
LU
3.2
LH
3.6
OAL
45
DCONMS
4
BHTA2
15
FHA
45
ZEFP
3
ZEFF
3
