diaedge
VQMHZVD0230
Skip to product information

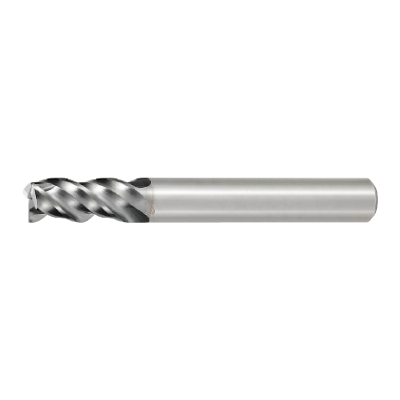

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

621739

ANSI

VQMHZV/2.3

ISO

VQMHZVD0230

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

2

Regular price $37.61 USD
Regular price Sale price $37.61 USD
Sale

EDP

621739

ANSI

VQMHZV/2.3

ISO

VQMHZVD0230

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information
VQMHZVD0230
Coolant
External
Hand
Right

Unit: mm

DC
2.3
APMX
4.6
LU
4.6
LH
5.5
OAL
50
DCONMS
6
BHTA2
15
FHA
45
ZEFP
3
ZEFF
3
VQMHZVD0230

Unit: mm

DC
2.3
APMX
4.6
LU
4.6
LH
5.5
OAL
50
DCONMS
6
BHTA2
15
FHA
45
ZEFP
3
ZEFF
3
