diaedge
VQMHZVD0300
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

621801

ANSI

VQMHZV/3

ISO

VQMHZVD0300

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

102

Regular price $38.60 USD
Regular price Sale price $38.60 USD
Sale

EDP

621801

ANSI

VQMHZV/3

ISO

VQMHZVD0300

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

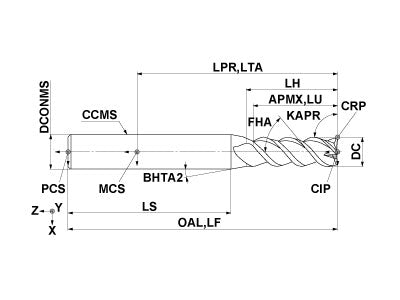

  • Drawings
  • Technical Information
VQMHZVD0300
Coolant
External
Hand
Right

Unit: mm

DC
3
APMX
6
LU
6
LH
6.9
OAL
50
DCONMS
6
BHTA2
15
FHA
45
ZEFP
3
ZEFF
3
VQMHZVD0300

Unit: mm

DC
3
APMX
6
LU
6
LH
6.9
OAL
50
DCONMS
6
BHTA2
15
FHA
45
ZEFP
3
ZEFF
3
