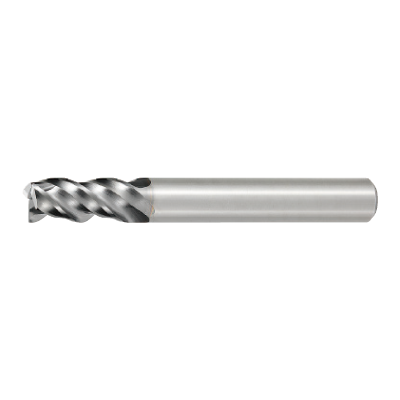

diaedge
VQMHZVD0350
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

621851

ANSI

VQMHZV/3.5

ISO

VQMHZVD0350

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

6

Regular price $48.55 USD
Regular price Sale price $48.55 USD
Sale

EDP

621851

ANSI

VQMHZV/3.5

ISO

VQMHZVD0350

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

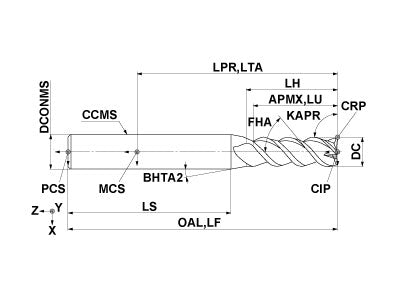

  • Drawings
  • Technical Information
VQMHZVD0350
Coolant
External
Hand
Right

Unit: mm

DC
3.5
APMX
8
LU
8
LH
9.2
OAL
50
DCONMS
6
BHTA2
15
FHA
45
ZEFP
3
ZEFF
3
VQMHZVD0350

Unit: mm

DC
3.5
APMX
8
LU
8
LH
9.2
OAL
50
DCONMS
6
BHTA2
15
FHA
45
ZEFP
3
ZEFF
3
