diaedge

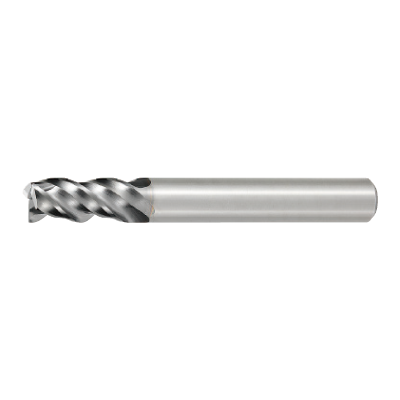

VQMHZVD0380
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

621886

ANSI

VQMHZV/3.8

ISO

VQMHZVD0380

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

34

Regular price $48.55 USD
Regular price Sale price $48.55 USD
Sale

EDP

621886

ANSI

VQMHZV/3.8

ISO

VQMHZVD0380

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information
VQMHZVD0380
Coolant
External
Hand
Right

Unit: mm

DC
3.8
APMX
8
LU
8
LH
9.2
OAL
50
DCONMS
6
BHTA2
15
FHA
45
ZEFP
3
ZEFF
3
VQMHZVD0380

Unit: mm

DC
3.8
APMX
8
LU
8
LH
9.2
OAL
50
DCONMS
6
BHTA2
15
FHA
45
ZEFP
3
ZEFF
3
