diaedge
VQMHZVD0500
Skip to product information

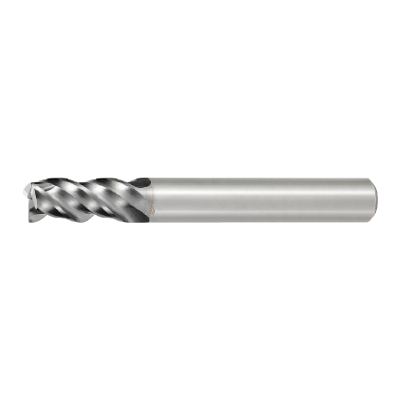

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

621923

ANSI

VQMHZV/5

ISO

VQMHZVD0500

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

39

Regular price $63.17 USD
Regular price Sale price $63.17 USD
Sale

EDP

621923

ANSI

VQMHZV/5

ISO

VQMHZVD0500

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information
VQMHZVD0500
Coolant
External
Hand
Right

Unit: mm

DC
5
APMX
10
LU
10
LH
11.2
OAL
50
DCONMS
6
BHTA2
15
FHA
45
ZEFP
3
ZEFF
3
VQMHZVD0500

Unit: mm

DC
5
APMX
10
LU
10
LH
11.2
OAL
50
DCONMS
6
BHTA2
15
FHA
45
ZEFP
3
ZEFF
3
