diaedge
VQMHZVD0800
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

621982

ANSI

VQMHZV/8

ISO

VQMHZVD0800

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

18

Regular price $92.96 USD
Regular price Sale price $92.96 USD
Sale

EDP

621982

ANSI

VQMHZV/8

ISO

VQMHZVD0800

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

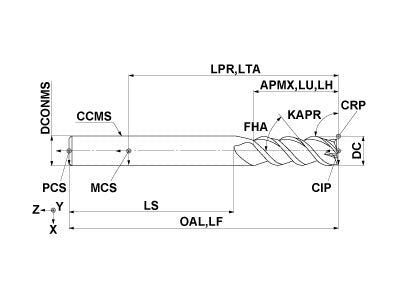

  • Drawings
  • Technical Information
VQMHZVD0800
Coolant
External
Hand
Right

Unit: mm

DC
8
APMX
19
LU
19
LH
19
OAL
70
DCONMS
8
FHA
45
ZEFP
3
ZEFF
3
VQMHZVD0800

Unit: mm

DC
8
APMX
19
LU
19
LH
19
OAL
70
DCONMS
8
FHA
45
ZEFP
3
ZEFF
3
