diaedge

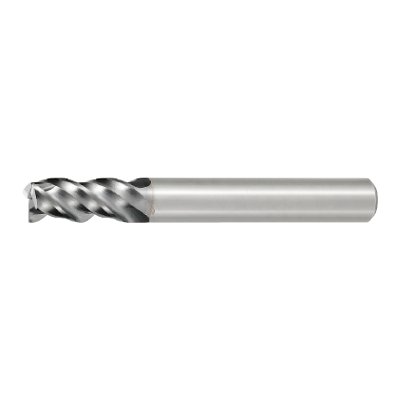

VQMHZVD1100
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

622037

ANSI

VQMHZV/11

ISO

VQMHZVD1100

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

4

Regular price $156.05 USD
Regular price Sale price $156.05 USD
Sale

EDP

622037

ANSI

VQMHZV/11

ISO

VQMHZVD1100

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information
VQMHZVD1100
Coolant
External
Hand
Right

Unit: mm

DC
11
APMX
22
LU
22
LH
24.3
OAL
80
DCONMS
12
BHTA2
15
FHA
45
ZEFP
3
ZEFF
3
VQMHZVD1100

Unit: mm

DC
11
APMX
22
LU
22
LH
24.3
OAL
80
DCONMS
12
BHTA2
15
FHA
45
ZEFP
3
ZEFF
3
