diaedge
VQ4SVBR0100
Skip to product information

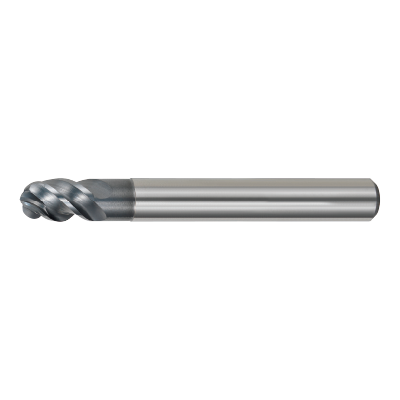

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

649416

ANSI

VQ4SVB/1R

ISO

VQ4SVBR0100

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

439

Regular price $49.62 USD
Regular price Sale price $49.62 USD
Sale

EDP

649416

ANSI

VQ4SVB/1R

ISO

VQ4SVBR0100

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information
VQ4SVBR0100
Coolant
External
Hand
Right

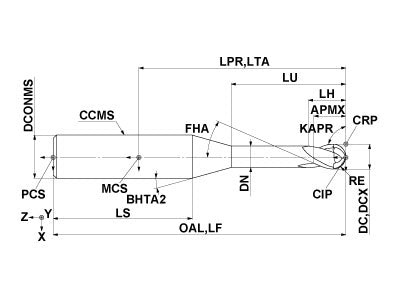

Unit: mm

DC
2
APMX
3
LU
5
LH
3.05
OAL
50
DN
1.9
DCONMS
6
BHTA2
12
RE
1
FHA
45
ZEFP
4
ZEFF
4
VQ4SVBR0100

Unit: mm

DC
2
APMX
3
LU
5
LH
3.05
OAL
50
DN
1.9
DCONMS
6
BHTA2
12
RE
1
FHA
45
ZEFP
4
ZEFF
4
