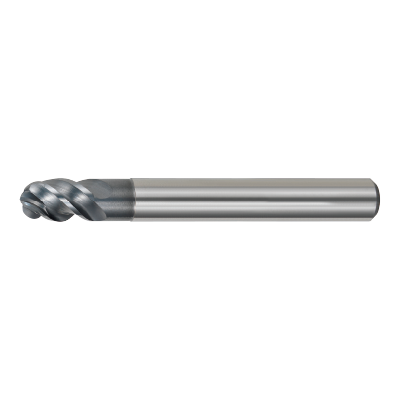

VQ4SVBR0250
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

649441

ANSI

VQ4SVB/2.5R

ISO

VQ4SVBR0250

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

33

Regular price $70.04 USD
Regular price Sale price $70.04 USD
Sale

EDP

649441

ANSI

VQ4SVB/2.5R

ISO

VQ4SVBR0250

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

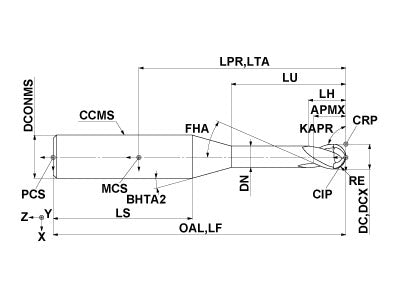

  • Drawings
  • Technical Information
VQ4SVBR0250
Coolant
External
Hand
Right

Unit: mm

DC
5
APMX
7.5
LU
12.5
LH
7.55
OAL
50
DN
4.9
DCONMS
6
BHTA2
12
RE
2.5
FHA
45
ZEFP
4
ZEFF
4
VQ4SVBR0250

Unit: mm

DC
5
APMX
7.5
LU
12.5
LH
7.55
OAL
50
DN
4.9
DCONMS
6
BHTA2
12
RE
2.5
FHA
45
ZEFP
4
ZEFF
4
