diaedge

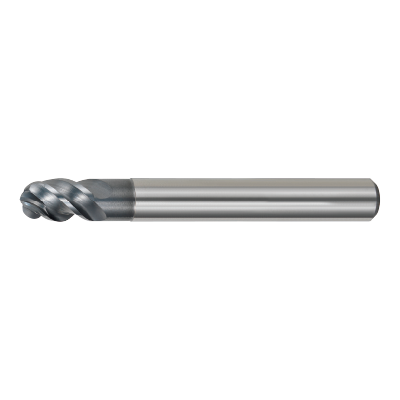

VQ4SVBR0400
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

649467

ANSI

VQ4SVB/4R

ISO

VQ4SVBR0400

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

46

Regular price $101.91 USD
Regular price Sale price $101.91 USD
Sale

EDP

649467

ANSI

VQ4SVB/4R

ISO

VQ4SVBR0400

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

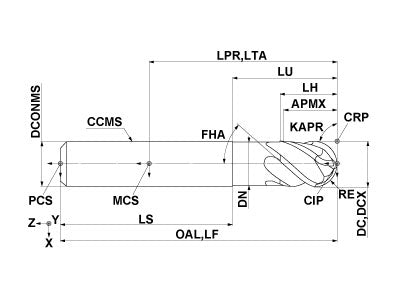

  • Drawings
  • Technical Information
VQ4SVBR0400
Coolant
External
Hand
Right

Unit: mm

DC
8
APMX
12
LU
20
LH
12.08
OAL
60
DN
7.85
DCONMS
8
RE
4
FHA
45
ZEFP
4
ZEFF
4
VQ4SVBR0400

Unit: mm

DC
8
APMX
12
LU
20
LH
12.08
OAL
60
DN
7.85
DCONMS
8
RE
4
FHA
45
ZEFP
4
ZEFF
4
