diaedge

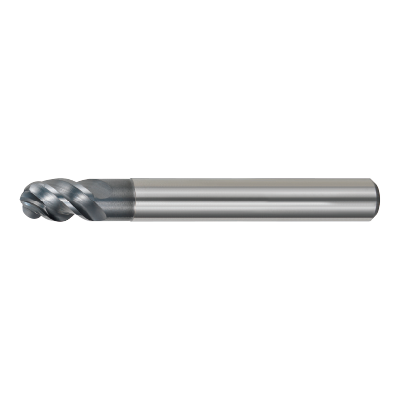

VQ4SVBR0500
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

649475

ANSI

VQ4SVB/5R

ISO

VQ4SVBR0500

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

14

Regular price $121.78 USD
Regular price Sale price $121.78 USD
Sale

EDP

649475

ANSI

VQ4SVB/5R

ISO

VQ4SVBR0500

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information
VQ4SVBR0500
Coolant
External
Hand
Right

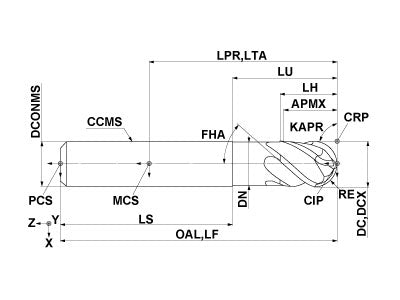

Unit: mm

DC
10
APMX
15
LU
25
LH
15.15
OAL
70
DN
9.7
DCONMS
10
RE
5
FHA
45
ZEFP
4
ZEFF
4
VQ4SVBR0500

Unit: mm

DC
10
APMX
15
LU
25
LH
15.15
OAL
70
DN
9.7
DCONMS
10
RE
5
FHA
45
ZEFP
4
ZEFF
4
