diaedge
VQMHVRBFD0600R030
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

649491

ANSI

VQMHVRB-F/0.3RX6

ISO

VQMHVRBFD0600R030

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

8

Regular price $101.35 USD
Regular price Sale price $101.35 USD
Sale

EDP

649491

ANSI

VQMHVRB-F/0.3RX6

ISO

VQMHVRBFD0600R030

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

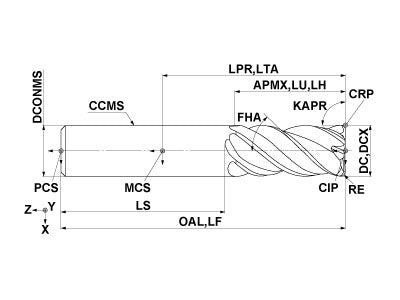

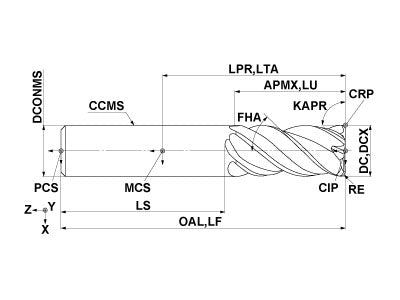

  • Drawings
  • Technical Information
VQMHVRBFD0600R030
Coolant
External
Hand
Right

Unit: mm

DC
6
APMX
13
LU
13
LH
13
OAL
50
DCONMS
6
RE
0.3
FHA
40
ZEFP
4
ZEFF
4
VQMHVRBFD0600R030

Unit: mm

DC
6
APMX
13
LU
13
LH
13
OAL
50
DCONMS
6
RE
0.3
FHA
40
ZEFP
4
ZEFF
4
