EDP

649601

ANSI

VQMHVRB-F/3RX12

ISO

VQMHVRBFD1200R300

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

1

Regular price $215.70 USD
Regular price Sale price $215.70 USD
Sale

EDP

649601

ANSI

VQMHVRB-F/3RX12

ISO

VQMHVRBFD1200R300

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

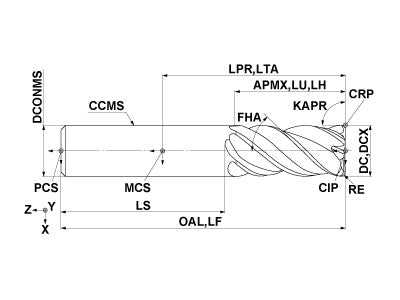

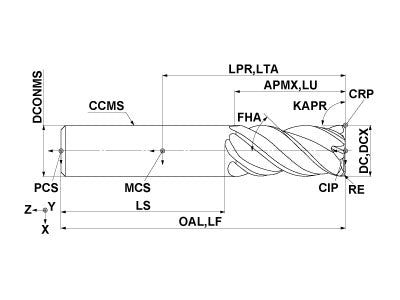

  • Drawings
  • Technical Information
VQMHVRBFD1200R300
Coolant
External
Hand
Right

Unit: mm

DC
12
APMX
26
LU
26
LH
26
OAL
75
DCONMS
12
RE
3
FHA
40
ZEFP
4
ZEFF
4
VQMHVRBFD1200R300

Unit: mm

DC
12
APMX
26
LU
26
LH
26
OAL
75
DCONMS
12
RE
3
FHA
40
ZEFP
4
ZEFF
4
