diaedge
VQ4SVBD3/16
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

657328

ANSI

VQ4SVB/D3/16

ISO

VQ4SVBD3/16

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

41

Regular price $70.03 USD
Regular price Sale price $70.03 USD
Sale

EDP

657328

ANSI

VQ4SVB/D3/16

ISO

VQ4SVBD3/16

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

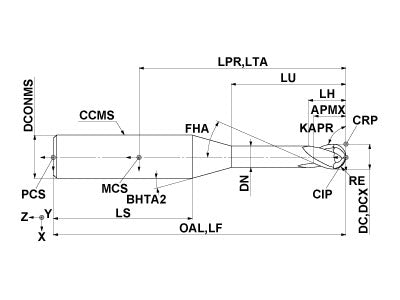

  • Drawings
  • Technical Information
VQ4SVBD3/16
Coolant
External
Hand
Right

Unit: inch

DC
0.1875
APMX
0.281
LU
0.4689
LH
0.283
OAL
2
DN
0.1835
DCONMS
0.25
BHTA2
12
RE
0.0938
FHA
45.0
ZEFP
4
ZEFF
4
VQ4SVBD3/16

Unit: inch

DC
0.1875
APMX
0.281
LU
0.4689
LH
0.283
OAL
2
DN
0.1835
DCONMS
0.25
BHTA2
12
RE
0.0938
FHA
45.0
ZEFP
4
ZEFF
4
