diaedge
VQ4SVBD1/4
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

657336

ANSI

VQ4SVB/D1/4

ISO

VQ4SVBD1/4

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

Out of stock

Regular price $74.91 USD
Regular price Sale price $74.91 USD
Sale

EDP

657336

ANSI

VQ4SVB/D1/4

ISO

VQ4SVBD1/4

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

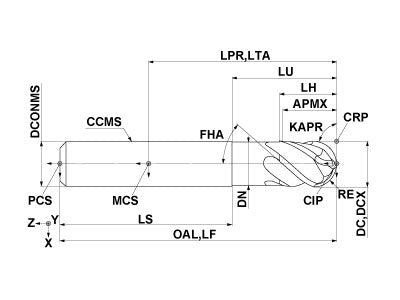

  • Drawings
  • Technical Information
VQ4SVBD1/4
Coolant
External
Hand
Right

Unit: inch

DC
0.25
APMX
0.375
LU
0.6252
LH
0.378
OAL
2
DN
0.2441
DCONMS
0.25
RE
0.125
FHA
45.0
ZEFP
4
ZEFF
4
VQ4SVBD1/4

Unit: inch

DC
0.25
APMX
0.375
LU
0.6252
LH
0.378
OAL
2
DN
0.2441
DCONMS
0.25
RE
0.125
FHA
45.0
ZEFP
4
ZEFF
4
