diaedge
VQ4SVBD3/8
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

657352

ANSI

VQ4SVB/D3/8

ISO

VQ4SVBD3/8

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

483

Regular price $131.51 USD
Regular price Sale price $131.51 USD
Sale

EDP

657352

ANSI

VQ4SVB/D3/8

ISO

VQ4SVBD3/8

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

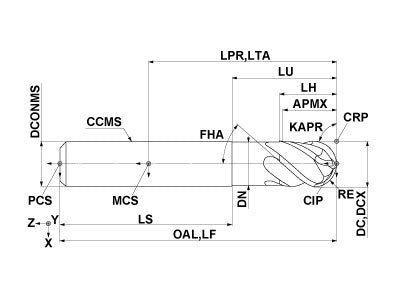

  • Drawings
  • Technical Information
VQ4SVBD3/8
Coolant
External
Hand
Right

Unit: inch

DC
0.375
APMX
0.563
LU
0.9374
LH
0.566
OAL
2.75
DN
0.3693
DCONMS
0.375
RE
0.1875
FHA
45.0
ZEFP
4
ZEFF
4
VQ4SVBD3/8

Unit: inch

DC
0.375
APMX
0.563
LU
0.9374
LH
0.566
OAL
2.75
DN
0.3693
DCONMS
0.375
RE
0.1875
FHA
45.0
ZEFP
4
ZEFF
4
