diaedge
VQ4SVBD1/2
Skip to product information

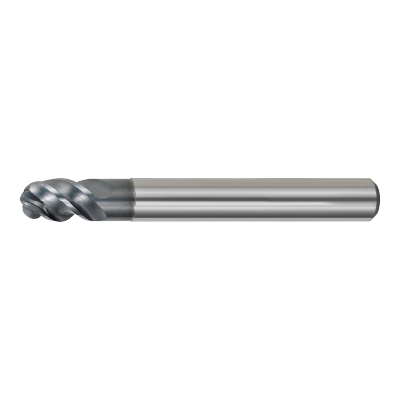

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

657361

ANSI

VQ4SVB/D1/2

ISO

VQ4SVBD1/2

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

22

Regular price $232.73 USD
Regular price Sale price $232.73 USD
Sale

EDP

657361

ANSI

VQ4SVB/D1/2

ISO

VQ4SVBD1/2

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

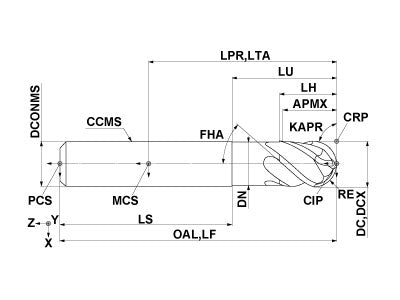

  • Drawings
  • Technical Information
VQ4SVBD1/2
Coolant
External
Hand
Right

Unit: inch

DC
0.5
APMX
0.75
LU
1.25
LH
0.756
OAL
3
DN
0.4882
DCONMS
0.5
RE
0.25
FHA
45.0
ZEFP
4
ZEFF
4
VQ4SVBD1/2

Unit: inch

DC
0.5
APMX
0.75
LU
1.25
LH
0.756
OAL
3
DN
0.4882
DCONMS
0.5
RE
0.25
FHA
45.0
ZEFP
4
ZEFF
4
