diaedge
VQMHVRBFD3/8R015
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

657424

ANSI

VQMHVRBF/015RX3/8

ISO

VQMHVRBFD3/8R015

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

24

Regular price $149.47 USD
Regular price Sale price $149.47 USD
Sale

EDP

657424

ANSI

VQMHVRBF/015RX3/8

ISO

VQMHVRBFD3/8R015

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information
VQMHVRBFD3/8R015
Coolant
External
Hand
Right

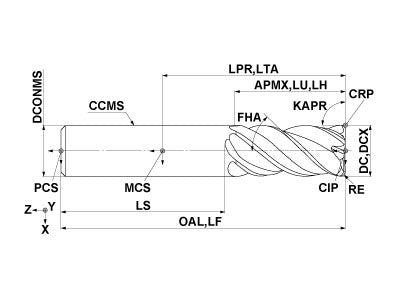

Unit: inch

DC
0.375
APMX
0.875
LU
0.875
LH
0.875
OAL
3
DCONMS
0.375
RE
0.015
FHA
40.0
ZEFP
4
ZEFF
4

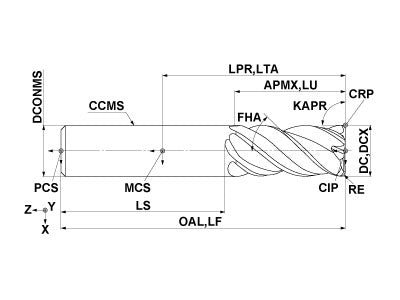

VQMHVRBFD3/8R015

Unit: inch

DC
0.375
APMX
0.875
LU
0.875
LH
0.875
OAL
3
DCONMS
0.375
RE
0.015
FHA
40.0
ZEFP
4
ZEFF
4
