diaedge

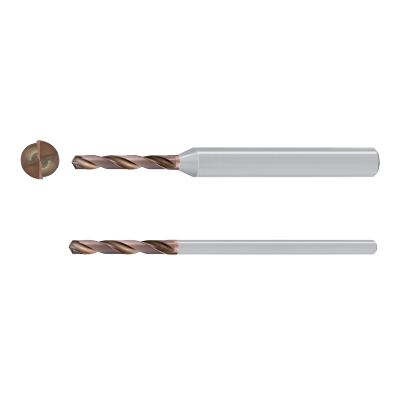

MVE0556X02S060 DP1020
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

662362

ANSI

MVE0556X02S060 DP1020

ISO

MVE0556X02S060 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)

230

Regular price $87.24 USD
Regular price Sale price $87.24 USD
Sale

EDP

662362

ANSI

MVE0556X02S060 DP1020

ISO

MVE0556X02S060 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features

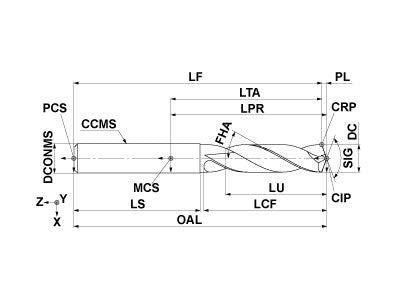

  • Drawings
  • Technical Information
MVE0556X02S060 DP1020
Coolant
External
Hand
Right

Unit: inch

DC
0.2188
ULDR
2.0
LU
0.477
LCF
1.142
OAL
2.638
DCONMS
0.236
PL
0.04
SIG
140
FHA
30
DC Max
0
DC Min
-0.0007
TCDCON
h6
ZEFF
2
MVE0556X02S060 DP1020

Unit: inch

DC
0.2188
ULDR
2.0
LU
0.477
LCF
1.142
OAL
2.638
DCONMS
0.236
PL
0.04
SIG
140
FHA
30
DC Max
0
DC Min
-0.0007
TCDCON
h6
ZEFF
2
