diaedge
MVE0635X02S080 DP1020
Skip to product information

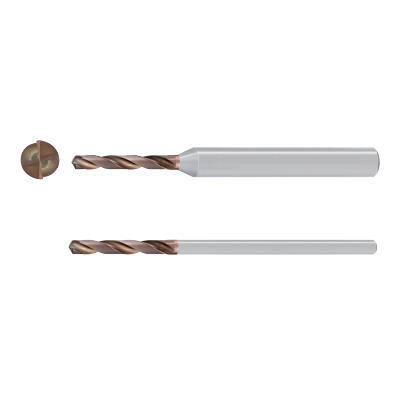

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

662389

ANSI

MVE0635X02S080 DP1020

ISO

MVE0635X02S080 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)

54

Regular price $98.80 USD
Regular price Sale price $98.80 USD
Sale

EDP

662389

ANSI

MVE0635X02S080 DP1020

ISO

MVE0635X02S080 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features

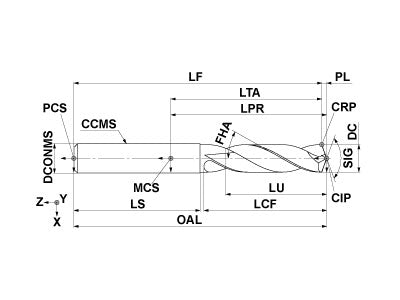

  • Drawings
  • Technical Information
MVE0635X02S080 DP1020
Coolant
External
Hand
Right

Unit: inch

DC
0.25
ULDR
2.0
LU
0.547
LCF
1.268
OAL
2.959
DCONMS
0.315
PL
0.045
SIG
140
FHA
30
DC Max
0
DC Min
-0.0009
TCDCON
h6
ZEFF
2
MVE0635X02S080 DP1020

Unit: inch

DC
0.25
ULDR
2.0
LU
0.547
LCF
1.268
OAL
2.959
DCONMS
0.315
PL
0.045
SIG
140
FHA
30
DC Max
0
DC Min
-0.0009
TCDCON
h6
ZEFF
2
