EDP

662451

ANSI

MVE0843X02S100 DP1020

ISO

MVE0843X02S100 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)

22

Regular price $133.69 USD
Regular price Sale price $133.69 USD
Sale

EDP

662451

ANSI

MVE0843X02S100 DP1020

ISO

MVE0843X02S100 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information

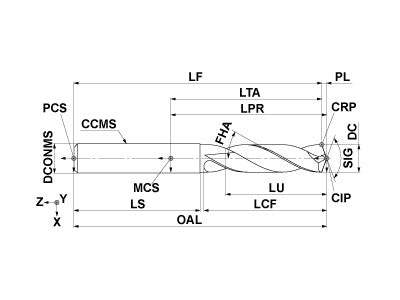

MVE0843X02S100 DP1020
Coolant
External
Hand
Right

Unit: inch

DC
0.332
ULDR
2.0
LU
0.723
LCF
1.516
OAL
3.368
DCONMS
0.394
PL
0.06
SIG
140
FHA
30
DC Max
0
DC Min
-0.0009
TCDCON
h6
ZEFF
2
MVE0843X02S100 DP1020

Unit: inch

DC
0.332
ULDR
2.0
LU
0.723
LCF
1.516
OAL
3.368
DCONMS
0.394
PL
0.06
SIG
140
FHA
30
DC Max
0
DC Min
-0.0009
TCDCON
h6
ZEFF
2
