MVE0873X02S100 DP1020
print open mailer

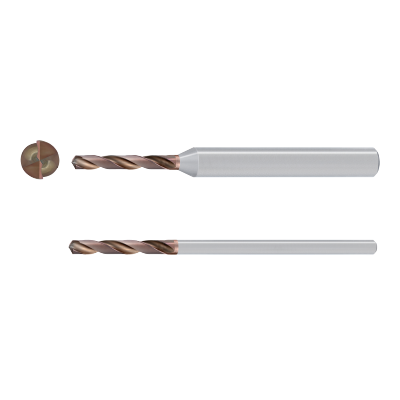

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

662469

ANSI

MVE0873X02S100 DP1020

ISO

MVE0873X02S100 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)

Stock
23

Price
$144.39 USD
$144.39 USD
Sale

EDP

662469

ANSI

MVE0873X02S100 DP1020

ISO

MVE0873X02S100 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features

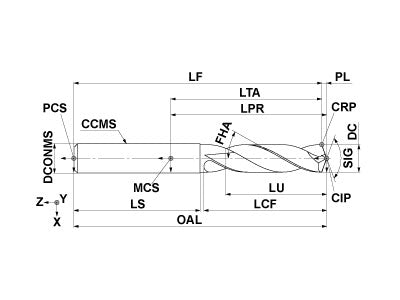

  • Drawings
  • Technical Information
MVE0873X02S100 DP1020
Coolant
External
Hand
Right

Unit: inch

DC
0.3438
ULDR
2.0
LU
0.751
LCF
1.638
OAL
3.37
DCONMS
0.3937
PL
0.063
SIG
140
FHA
30
DC Max
0
DC Min
-0.0009
ZEFF
2
MVE0873X02S100 DP1020

Unit: inch

DC
0.3438
ULDR
2.0
LU
0.751
LCF
1.638
OAL
3.37
DCONMS
0.3937
PL
0.063
SIG
140
FHA
30
DC Max
0
DC Min
-0.0009
ZEFF
2
