EDP

662485

ANSI

MVE0935X02S100 DP1020

ISO

MVE0935X02S100 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)

41

Regular price $177.83 USD
Regular price Sale price $177.83 USD
Sale

EDP

662485

ANSI

MVE0935X02S100 DP1020

ISO

MVE0935X02S100 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information

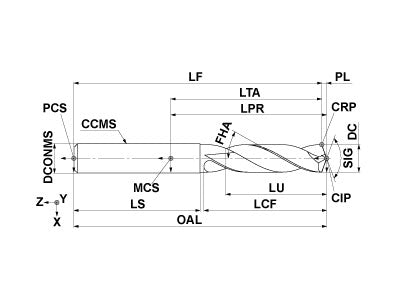

MVE0935X02S100 DP1020
Coolant
External
Hand
Right

Unit: inch

DC
0.368
ULDR
2.0
LU
0.803
LCF
1.642
OAL
3.571
DCONMS
0.394
PL
0.067
SIG
140
FHA
30
DC Max
0
DC Min
-0.0009
TCDCON
h6
ZEFF
2
MVE0935X02S100 DP1020

Unit: inch

DC
0.368
ULDR
2.0
LU
0.803
LCF
1.642
OAL
3.571
DCONMS
0.394
PL
0.067
SIG
140
FHA
30
DC Max
0
DC Min
-0.0009
TCDCON
h6
ZEFF
2
