diaedge
MVE1032X02S120 DP1020
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

662514

ANSI

MVE1032X02S120 DP1020

ISO

MVE1032X02S120 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)

Out of stock

Regular price $194.22 USD
Regular price Sale price $194.22 USD
Sale

EDP

662514

ANSI

MVE1032X02S120 DP1020

ISO

MVE1032X02S120 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features

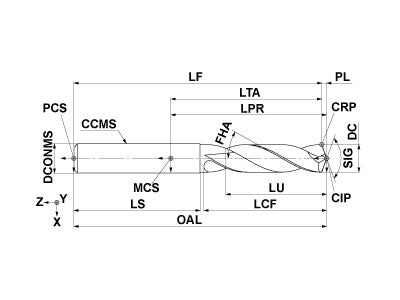

  • Drawings
  • Technical Information
MVE1032X02S120 DP1020
Coolant
External
Hand
Right

Unit: inch

DC
0.4062
ULDR
2.0
LU
0.887
LCF
1.768
OAL
3.814
DCONMS
0.472
PL
0.074
SIG
140
FHA
30
DC Max
0
DC Min
-0.0011
TCDCON
h6
ZEFF
2
