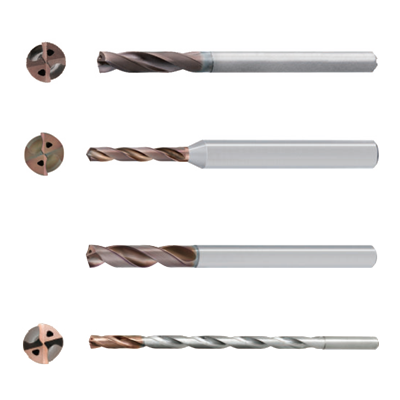

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

663285

ANSI

MVS0913X08S100 DP1020

ISO

MVS0913X08S100 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

61

Regular price $355.64 USD
Regular price Sale price $355.64 USD
Sale

EDP

663285

ANSI

MVS0913X08S100 DP1020

ISO

MVS0913X08S100 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information
MVS0913X08S100 DP1020
Coolant
Internal
Hand
Right

Unit: inch

DC
0.3594
ULDR
8
LU
2.942
LCF
4.201
OAL
6.601
DCONMS
0.3937
PL
0.065
SIG
140
FHA
30
DC Max
0
DC Min
-0.0009
ZEFF
2
