MVE0440X02S060 DP1020
print open mailer

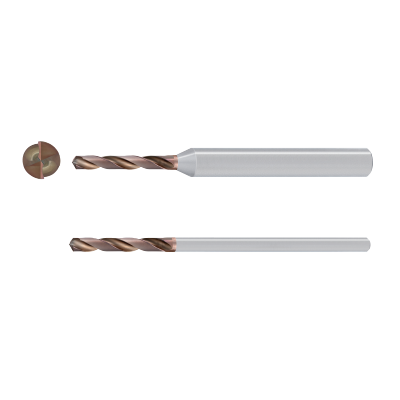

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

663656

ANSI

MVE0440X02S060 DP1020

ISO

MVE0440X02S060 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)

Stock
12

Price
$83.59 USD
$83.59 USD
Sale

EDP

663656

ANSI

MVE0440X02S060 DP1020

ISO

MVE0440X02S060 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features

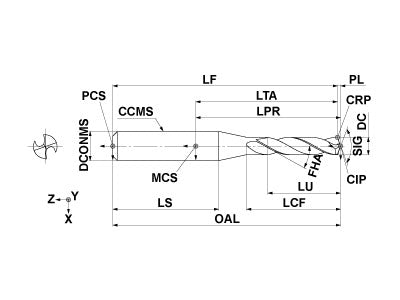

  • Drawings
  • Technical Information
MVE0440X02S060 DP1020
Coolant
External
Hand
Right

Unit: mm

DC
4.4
ULDR
2
LU
9.6
LCF
22.8
OAL
62.8
DCONMS
6
PL
0.8
SIG
140
FHA
30
DC Max
0
DC Min
-0.018
ZEFF
2
MVE0440X02S060 DP1020

Unit: mm

DC
4.4
ULDR
2
LU
9.6
LCF
22.8
OAL
62.8
DCONMS
6
PL
0.8
SIG
140
FHA
30
DC Max
0
DC Min
-0.018
ZEFF
2
