EDP
664384
ANSI
MVE0910X02S100 DP1020
ISO
MVE0910X02S100 DP1020






Stock
4
Price
Regular price
$177.83 USD
Regular price
Sale price
$177.83 USD
Unit price
/
per
EDP
664384
ANSI
MVE0910X02S100 DP1020
ISO
MVE0910X02S100 DP1020






Change the number in sums of 1s.
Couldn't load pickup availability


- Dimensions
- Features

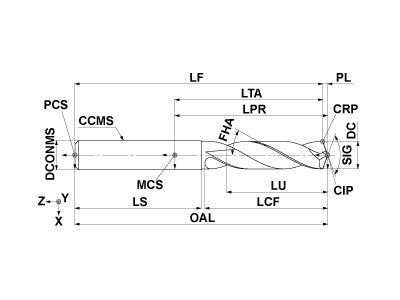

- Drawings
- Technical Information

Coolant
External
Hand
Right
Unit: mm
DC
9.1
ULDR
2
LU
19.9
LCF
41.7
OAL
90.7
DCONMS
10
PL
1.7
SIG
140
FHA
30
DC Max
0
DC Min
-0.022
TCDCON
h6
ZEFF
2

Unit: mm
DC
9.1
ULDR
2
LU
19.9
LCF
41.7
OAL
90.7
DCONMS
10
PL
1.7
SIG
140
FHA
30
DC Max
0
DC Min
-0.022
TCDCON
h6
ZEFF
2

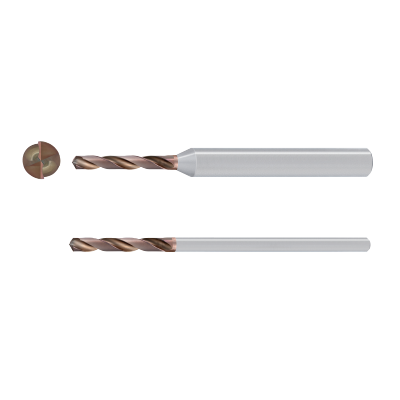

New grade DP1020 offers long tool life for a wide range of work materials.
The unique wavy cutting edge provides excellent sharpness and rigidity and helps to control wear at the periphery.
2D Model (DXF)
3D Model (STP)
