EDP
664413
ANSI
MVE0940X02S100 DP1020
ISO
MVE0940X02S100 DP1020
![P (Steel)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-P.png?v=100455598971133347731700003449)
![M (Stainless)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-M.png?v=180646633914269519611700003449)
![K (Cast Iron)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-K.png?v=179829309681585967941700003448)
![N (Non-Ferrous)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-N.png?v=159995307732735548301700003449)
![S (Heat-Resistant)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-S.png?v=30775661030167115161700003450)
![H (Hard material)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-H.png?v=152662001445288260811700003448)
Stock
10
Price
Regular price
$177.83 USD
Regular price
Sale price
$177.83 USD
Unit price
/
per
EDP
664413
ANSI
MVE0940X02S100 DP1020
ISO
MVE0940X02S100 DP1020
![P (Steel)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-P.png?v=100455598971133347731700003449)
![M (Stainless)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-M.png?v=180646633914269519611700003449)
![K (Cast Iron)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-K.png?v=179829309681585967941700003448)
![N (Non-Ferrous)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-N.png?v=159995307732735548301700003449)
![S (Heat-Resistant)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-S.png?v=30775661030167115161700003450)
![H (Hard material)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-H.png?v=152662001445288260811700003448)
Change the number in sums of 1s.
Couldn't load pickup availability
![MVE0940X02S100 DP1020](http://mmusec.mmc-carbide.com/cdn/shop/files/DRLFSS_MI_MVE_MMSS_4e5a8875-ded1-4ee1-a3a2-88163d4c35de.png?v=1724489716&width=1445)
![MVE0940X02S100 DP1020](http://mmusec.mmc-carbide.com/cdn/shop/files/DRLFSS_MI_MVE_MMSS_2_30437e77-b814-425a-b029-7f6092b309e3.jpg?v=1724489716&width=1445)
- Dimensions
- Features

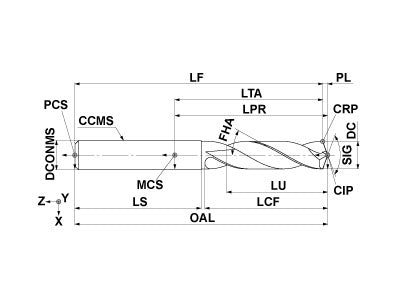

- Drawings
- Technical Information
![MVE0940X02S100 DP1020](http://mmusec.mmc-carbide.com/cdn/shop/files/DRLFSS_MI_MVE_MMSS_2_30437e77-b814-425a-b029-7f6092b309e3.jpg?v=1724489716&width=416)
Coolant
External
Hand
Right
Unit: mm
DC
9.4
ULDR
2
LU
20.5
LCF
41.7
OAL
90.7
DCONMS
10
PL
1.7
SIG
140
FHA
30
DC Max
0
DC Min
-0.022
TCDCON
h6
ZEFF
2
![MVE0940X02S100 DP1020](http://mmusec.mmc-carbide.com/cdn/shop/files/DRLFSS_MI_MVE_MMSS_2_30437e77-b814-425a-b029-7f6092b309e3.jpg?v=1724489716&width=416)
Unit: mm
DC
9.4
ULDR
2
LU
20.5
LCF
41.7
OAL
90.7
DCONMS
10
PL
1.7
SIG
140
FHA
30
DC Max
0
DC Min
-0.022
TCDCON
h6
ZEFF
2
New grade DP1020 offers long tool life for a wide range of work materials.
The unique wavy cutting edge provides excellent sharpness and rigidity and helps to control wear at the periphery.
2D Model (DXF)
3D Model (STP)
