diaedge
MVS0410X03S060 DP1020
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

666435

ANSI

MVS0410X03S060 DP1020

ISO

MVS0410X03S060 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

49

Regular price $87.24 USD
Regular price Sale price $87.24 USD
Sale

EDP

666435

ANSI

MVS0410X03S060 DP1020

ISO

MVS0410X03S060 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

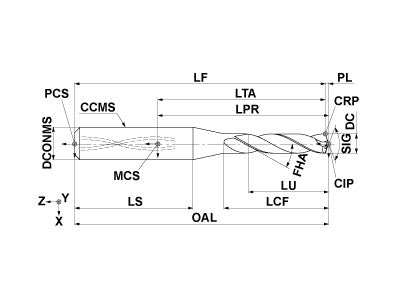

  • Drawings
  • Technical Information
MVS0410X03S060 DP1020
Coolant
Internal
Hand
Right

Unit: mm

DC
4.1
ULDR
3
LU
13
LCF
25.7
OAL
86.7
DCONMS
6
PL
0.7
SIG
140
FHA
30
DC Max
0
DC Min
-0.018
ZEFF
2
MVS0410X03S060 DP1020

Unit: mm

DC
4.1
ULDR
3
LU
13
LCF
25.7
OAL
86.7
DCONMS
6
PL
0.7
SIG
140
FHA
30
DC Max
0
DC Min
-0.018
ZEFF
2
