diaedge
MVS0400X05S060 DP1020
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

667833

ANSI

MVS0400X05S060 DP1020

ISO

MVS0400X05S060 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

87

Regular price $123.83 USD
Regular price Sale price $123.83 USD
Sale

EDP

667833

ANSI

MVS0400X05S060 DP1020

ISO

MVS0400X05S060 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

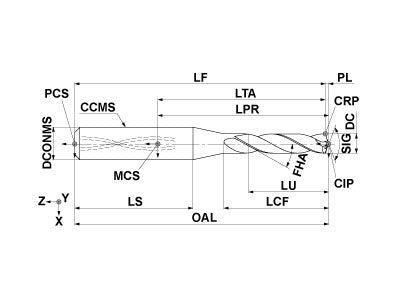

  • Drawings
  • Technical Information
MVS0400X05S060 DP1020
Coolant
Internal
Hand
Right

Unit: mm

DC
4
ULDR
5
LU
20.7
LCF
36.7
OAL
92.7
DCONMS
6
PL
0.7
SIG
140
FHA
30
DC Max
0
DC Min
-0.018
TCDCON
h6
ZEFF
2
MVS0400X05S060 DP1020

Unit: mm

DC
4
ULDR
5
LU
20.7
LCF
36.7
OAL
92.7
DCONMS
6
PL
0.7
SIG
140
FHA
30
DC Max
0
DC Min
-0.018
TCDCON
h6
ZEFF
2
