diaedge
MVS0320X08S060 DP1020
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

669097

ANSI

MVS0320X08S060 DP1020

ISO

MVS0320X08S060 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

55

Regular price $208.22 USD
Regular price Sale price $208.22 USD
Sale

EDP

669097

ANSI

MVS0320X08S060 DP1020

ISO

MVS0320X08S060 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

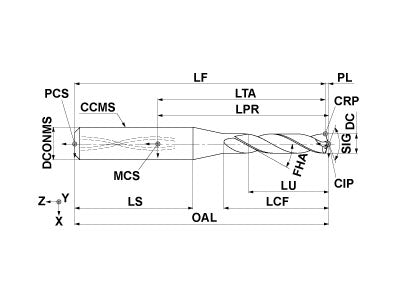

  • Drawings
  • Technical Information
MVS0320X08S060 DP1020
Coolant
Internal
Hand
Right

Unit: mm

DC
3.2
ULDR
8
LU
26.2
LCF
41.6
OAL
87.6
DCONMS
6
PL
0.6
SIG
140
FHA
30
DC Max
0
DC Min
-0.018
TCDCON
h6
ZEFF
2
MVS0320X08S060 DP1020

Unit: mm

DC
3.2
ULDR
8
LU
26.2
LCF
41.6
OAL
87.6
DCONMS
6
PL
0.6
SIG
140
FHA
30
DC Max
0
DC Min
-0.018
TCDCON
h6
ZEFF
2
