MVS0400X08S060 DP1020
print open mailer

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

669257

ANSI

MVS0400X08S060 DP1020

ISO

MVS0400X08S060 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

Stock
58

Price
$208.22 USD
$208.22 USD
Sale

EDP

669257

ANSI

MVS0400X08S060 DP1020

ISO

MVS0400X08S060 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

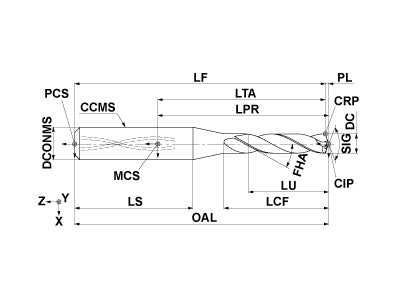

  • Drawings
  • Technical Information
MVS0400X08S060 DP1020
Coolant
Internal
Hand
Right

Unit: mm

DC
4
ULDR
8
LU
32.7
LCF
46.7
OAL
92.7
DCONMS
6
PL
0.7
SIG
140
FHA
30
DC Max
0
DC Min
-0.018
ZEFF
2
MVS0400X08S060 DP1020

Unit: mm

DC
4
ULDR
8
LU
32.7
LCF
46.7
OAL
92.7
DCONMS
6
PL
0.7
SIG
140
FHA
30
DC Max
0
DC Min
-0.018
ZEFF
2
