diaedge
MVS0430X08S060 DP1020
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

669311

ANSI

MVS0430X08S060 DP1020

ISO

MVS0430X08S060 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

113

Regular price $202.66 USD
Regular price Sale price $202.66 USD
Sale

EDP

669311

ANSI

MVS0430X08S060 DP1020

ISO

MVS0430X08S060 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

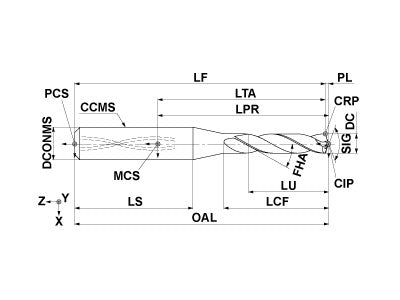

  • Drawings
  • Technical Information
MVS0430X08S060 DP1020
Coolant
Internal
Hand
Right

Unit: mm

DC
4.3
ULDR
8
LU
35.2
LCF
52.8
OAL
100.8
DCONMS
6
PL
0.8
SIG
140
FHA
30
DC Max
0
DC Min
-0.018
TCDCON
h6
ZEFF
2
MVS0430X08S060 DP1020

Unit: mm

DC
4.3
ULDR
8
LU
35.2
LCF
52.8
OAL
100.8
DCONMS
6
PL
0.8
SIG
140
FHA
30
DC Max
0
DC Min
-0.018
TCDCON
h6
ZEFF
2
