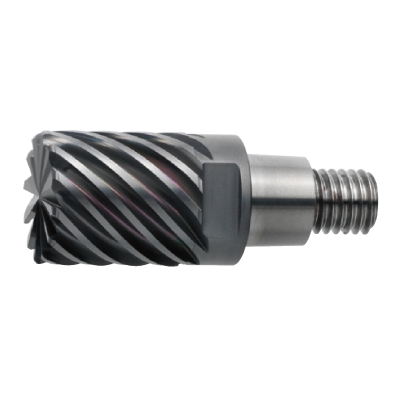

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

675657

ANSI

IMX16C10HV160R10016 EP7020

ISO

IMX16C10HV160R10016 EP7020

P (Steel) M (Stainless) S (Heat-Resistant)

8

Regular price $238.25 USD
Regular price Sale price $238.25 USD
Sale

EDP

675657

ANSI

IMX16C10HV160R10016 EP7020

ISO

IMX16C10HV160R10016 EP7020

P (Steel) M (Stainless) S (Heat-Resistant)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information
IMX16C10HV160R10016 EP7020
Coolant
External
Hand
Right

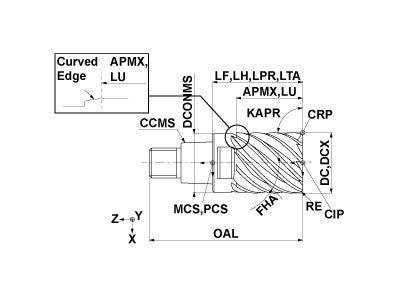

Unit: mm

DC
16
APMX
16
LU
16
LH
24
OAL
41.3
DCONMS
15.5
RE
1
FHA
45
ZEFP
10
ZEFF
10

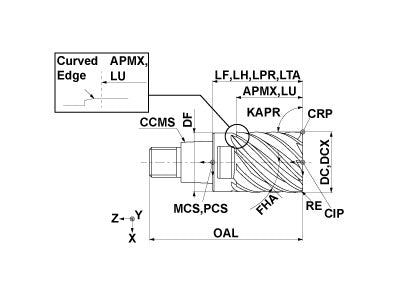

IMX16C10HV160R10016 EP7020

Unit: mm

DC
16
APMX
16
LU
16
LH
24
OAL
41.3
DCONMS
15.5
RE
1
FHA
45
ZEFP
10
ZEFF
10
