diaedge

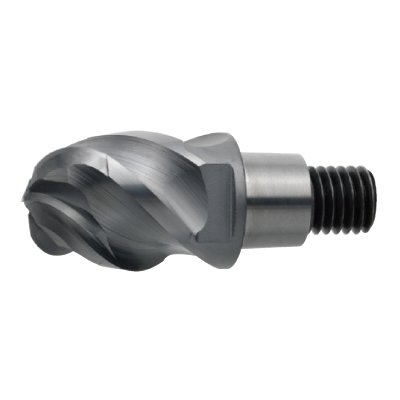

IMX12B4HV12012 EP7020
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

675690

ANSI

IMX12B4HV12012 EP7020

ISO

IMX12B4HV12012 EP7020

P (Steel) M (Stainless) S (Heat-Resistant)

16

Regular price $167.37 USD
Regular price Sale price $167.37 USD
Sale

EDP

675690

ANSI

IMX12B4HV12012 EP7020

ISO

IMX12B4HV12012 EP7020

P (Steel) M (Stainless) S (Heat-Resistant)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information

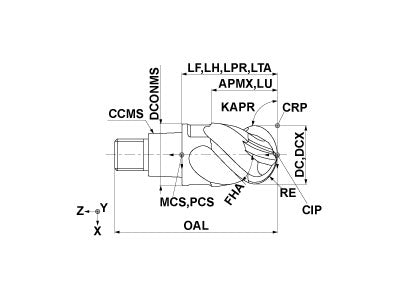

IMX12B4HV12012 EP7020
Coolant
External
Hand
Right

Unit: mm

DC
12
APMX
12.5
LU
12.5
LH
19
OAL
33.7
DCONMS
11.7
RE
6
FHA
45
ZEFP
4
ZEFF
4
IMX12B4HV12012 EP7020

Unit: mm

DC
12
APMX
12.5
LU
12.5
LH
19
OAL
33.7
DCONMS
11.7
RE
6
FHA
45
ZEFP
4
ZEFF
4
