diaedge
MVX0687X3C100
Skip to product information

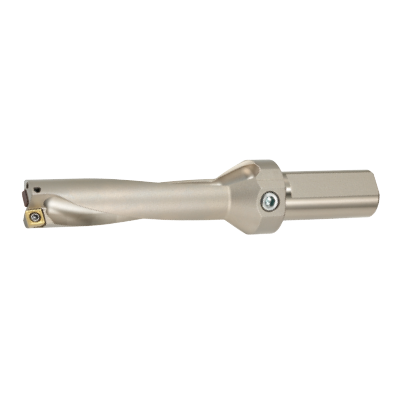

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

679391

ANSI

MVX0687X3C100

ISO

MVX0687X3C100

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) H (Hard material)

16

Regular price $534.05 USD
Regular price Sale price $534.05 USD
Sale

EDP

679391

ANSI

MVX0687X3C100

ISO

MVX0687X3C100

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) H (Hard material)
View full details
  • Dimensions
  • Features

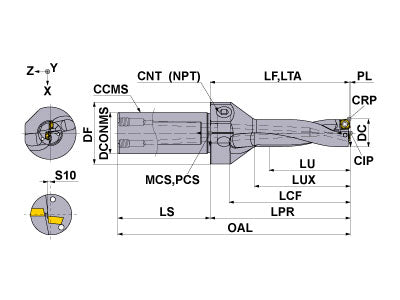

  • Drawings
  • Technical Information
MVX0687X3C100
Coolant
Internal
Hand
Right

Unit: inch

DC
0.687
ULDR
3.0
LU
2.061
LPR
3.41
OAL
5.66
DCONMS
1
PL
0.047
ZEFF
1
MVX0687X3C100

Unit: inch

DC
0.687
ULDR
3.0
LU
2.061
LPR
3.41
OAL
5.66
DCONMS
1
PL
0.047
ZEFF
1

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TPS25 291581 TPS25
inventory mark
$2.74
HKY25R 102288 HKY25R
inventory mark
$3.05
TIP07F 291573 TIP07F
inventory mark
$5.13
