diaedge
MVX1250X2C150
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

679834

ANSI

MVX1250X2C150

ISO

MVX1250X2C150

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) H (Hard material)

47

Regular price $648.86 USD
Regular price Sale price $648.86 USD
Sale

EDP

679834

ANSI

MVX1250X2C150

ISO

MVX1250X2C150

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) H (Hard material)
View full details
  • Dimensions
  • Features

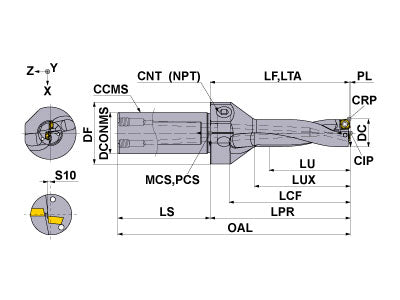

  • Drawings
  • Technical Information
MVX1250X2C150
Coolant
Internal
Hand
Right

Unit: inch

DC
1.25
ULDR
2.0
LU
2.5
LPR
3.87
OAL
6.62
DCONMS
1.5
PL
0.066
ZEFF
1
MVX1250X2C150

Unit: inch

DC
1.25
ULDR
2.0
LU
2.5
LPR
3.87
OAL
6.62
DCONMS
1.5
PL
0.066
ZEFF
1

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TPS4 389044 TPS4
inventory mark
$2.96
TIP15W 410544 TIP15W
inventory mark
$22.13
HKY30R 102290 HKY30R
inventory mark
$3.64
