IMX20C4HV0750R190M EP7020
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

682751

ANSI

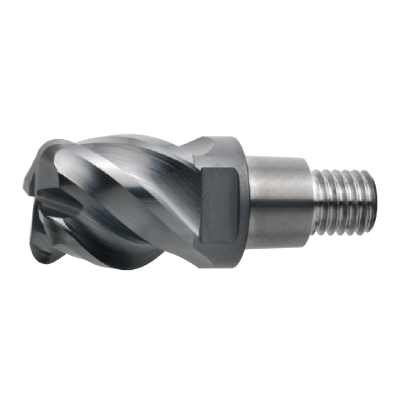

IMX20C4HV0750R190M EP7020

ISO

IMX20C4HV0750R190M EP7020

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

75

Regular price $259.35 USD
Regular price Sale price $259.35 USD
Sale

EDP

682751

ANSI

IMX20C4HV0750R190M EP7020

ISO

IMX20C4HV0750R190M EP7020

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

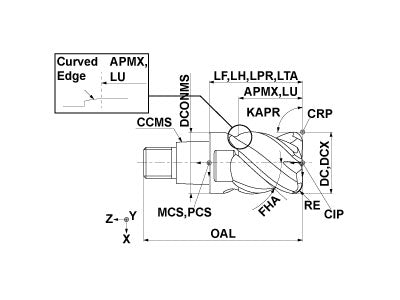

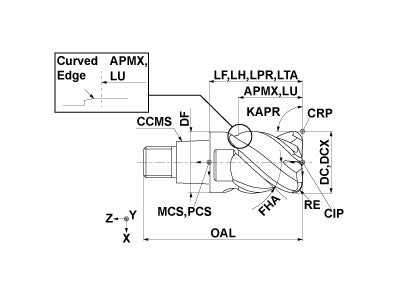

  • Drawings
  • Technical Information
IMX20C4HV0750R190M EP7020
Coolant
External
Hand
Right

Unit: inch

DC
0.75
APMX
0.75
LU
0.75
LH
1.181
OAL
2.008
DCONMS
0.73
RE
0.19
FHA
45.0
ZEFP
4
ZEFF
4
IMX20C4HV0750R190M EP7020

Unit: inch

DC
0.75
APMX
0.75
LU
0.75
LH
1.181
OAL
2.008
DCONMS
0.73
RE
0.19
FHA
45.0
ZEFP
4
ZEFF
4
