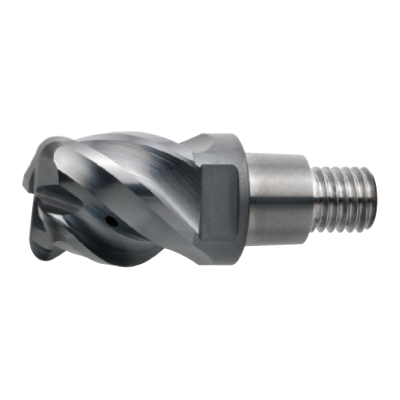

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

682822

ANSI

IMX10C4HV0375R030MS EP7020

ISO

IMX10C4HV0375R030MS EP7020

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

123

Regular price $146.26 USD
Regular price Sale price $146.26 USD
Sale

EDP

682822

ANSI

IMX10C4HV0375R030MS EP7020

ISO

IMX10C4HV0375R030MS EP7020

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

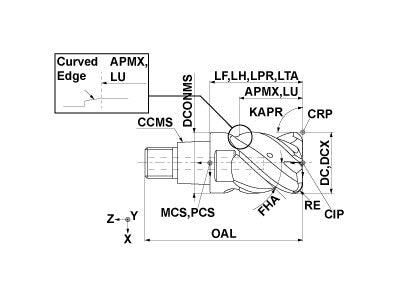

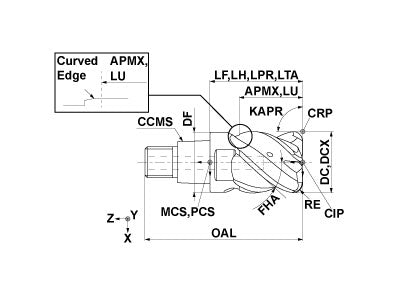

  • Drawings
  • Technical Information
IMX10C4HV0375R030MS EP7020
Coolant
Internal
Hand
Right

Unit: inch

DC
0.375
APMX
0.375
LU
0.375
LH
0.63
OAL
1.146
DCONMS
0.363
RE
0.03
FHA
45.0
ZEFP
4
ZEFF
4
IMX10C4HV0375R030MS EP7020

Unit: inch

DC
0.375
APMX
0.375
LU
0.375
LH
0.63
OAL
1.146
DCONMS
0.363
RE
0.03
FHA
45.0
ZEFP
4
ZEFF
4
