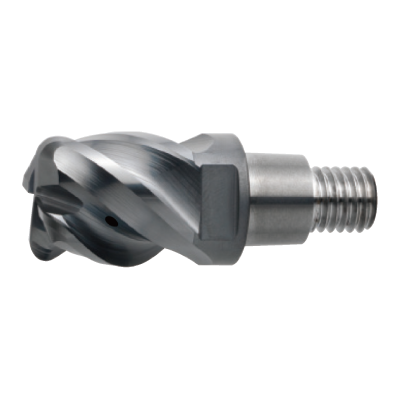

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

682831

ANSI

IMX12C4HV0500R030MS EP7020

ISO

IMX12C4HV0500R030MS EP7020

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

11

Regular price $182.44 USD
Regular price Sale price $182.44 USD
Sale

EDP

682831

ANSI

IMX12C4HV0500R030MS EP7020

ISO

IMX12C4HV0500R030MS EP7020

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

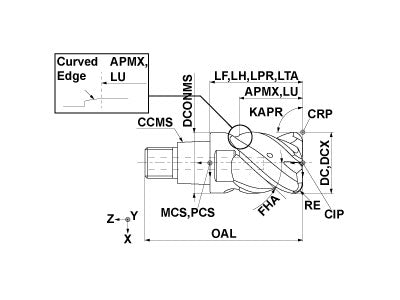

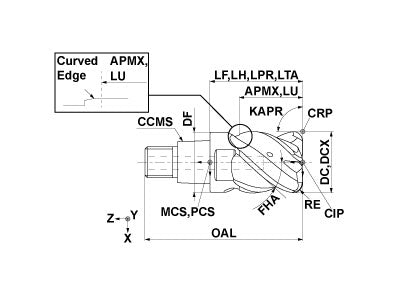

  • Drawings
  • Technical Information
IMX12C4HV0500R030MS EP7020
Coolant
Internal
Hand
Right

Unit: inch

DC
0.5
APMX
0.5
LU
0.5
LH
0.789
OAL
1.368
DCONMS
0.488
RE
0.03
FHA
45.0
ZEFP
4
ZEFF
4
IMX12C4HV0500R030MS EP7020

Unit: inch

DC
0.5
APMX
0.5
LU
0.5
LH
0.789
OAL
1.368
DCONMS
0.488
RE
0.03
FHA
45.0
ZEFP
4
ZEFF
4
