IMX16C10HV0625R030M EP7020
Skip to product information

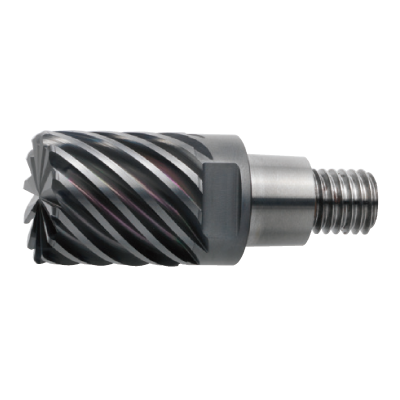

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

682890

ANSI

IMX16C10HV0625R030M EP7020

ISO

IMX16C10HV0625R030M EP7020

P (Steel) M (Stainless) S (Heat-Resistant)

96

Regular price $238.25 USD
Regular price Sale price $238.25 USD
Sale

EDP

682890

ANSI

IMX16C10HV0625R030M EP7020

ISO

IMX16C10HV0625R030M EP7020

P (Steel) M (Stainless) S (Heat-Resistant)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information
IMX16C10HV0625R030M EP7020
Coolant
External
Hand
Right

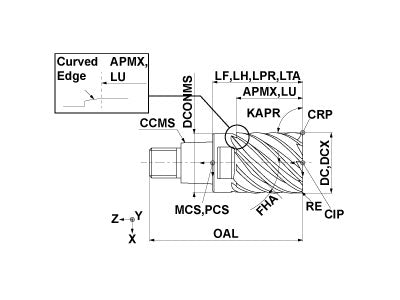

Unit: inch

DC
0.625
APMX
0.625
LU
0.625
LH
0.945
OAL
1.624
DCONMS
0.605
RE
0.03
FHA
45.0
ZEFP
10
ZEFF
10

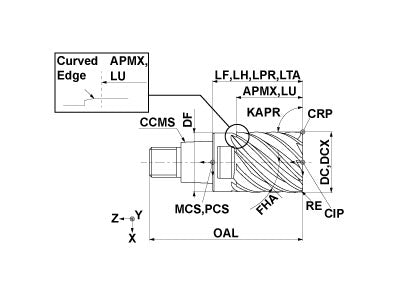

IMX16C10HV0625R030M EP7020

Unit: inch

DC
0.625
APMX
0.625
LU
0.625
LH
0.945
OAL
1.624
DCONMS
0.605
RE
0.03
FHA
45.0
ZEFP
10
ZEFF
10
