IMX25C12HV1000R030M EP7020
Skip to product information

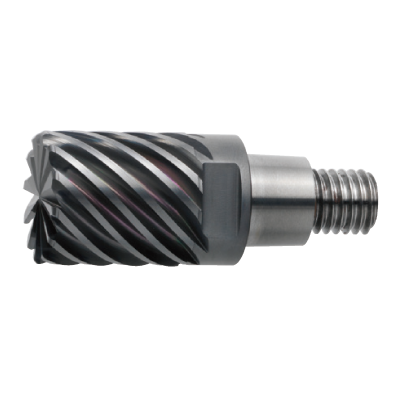

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

682911

ANSI

IMX25C12HV1000R030M EP7020

ISO

IMX25C12HV1000R030M EP7020

P (Steel) M (Stainless) S (Heat-Resistant)

110

Regular price $465.91 USD
Regular price Sale price $465.91 USD
Sale

EDP

682911

ANSI

IMX25C12HV1000R030M EP7020

ISO

IMX25C12HV1000R030M EP7020

P (Steel) M (Stainless) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

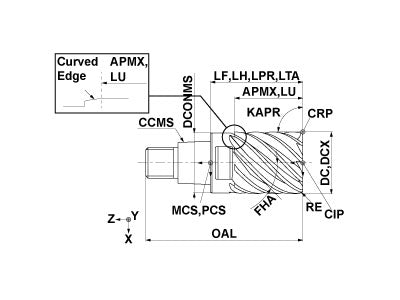

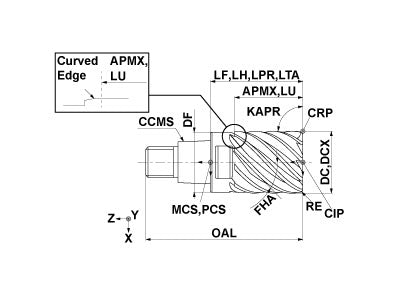

  • Drawings
  • Technical Information
IMX25C12HV1000R030M EP7020
Coolant
External
Hand
Right

Unit: inch

DC
1
APMX
1
LU
1
LH
1.5
OAL
2.494
DCONMS
0.98
RE
0.03
FHA
45.0
ZEFP
12
ZEFF
12
IMX25C12HV1000R030M EP7020

Unit: inch

DC
1
APMX
1
LU
1
LH
1.5
OAL
2.494
DCONMS
0.98
RE
0.03
FHA
45.0
ZEFP
12
ZEFF
12
