diaedge

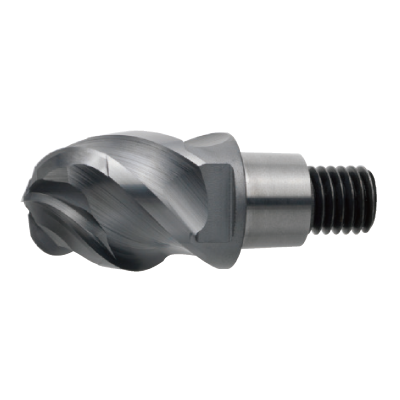

IMX10B4HV0375M EP7020
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

682929

ANSI

IMX10B4HV0375M EP7020

ISO

IMX10B4HV0375M EP7020

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

26

Regular price $144.94 USD
Regular price Sale price $144.94 USD
Sale

EDP

682929

ANSI

IMX10B4HV0375M EP7020

ISO

IMX10B4HV0375M EP7020

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

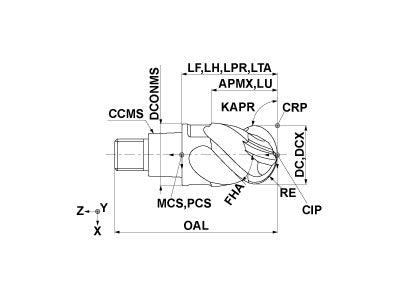

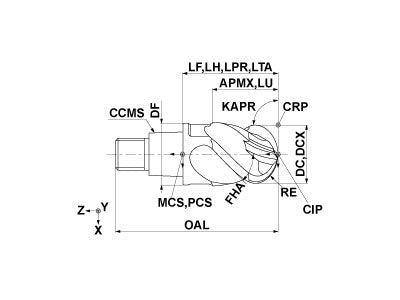

  • Drawings
  • Technical Information
IMX10B4HV0375M EP7020
Coolant
External
Hand
Right

Unit: inch

DC
0.375
APMX
0.395
LU
0.395
LH
0.63
OAL
1.146
DCONMS
0.363
RE
0.1875
FHA
45.0
ZEFP
4
ZEFF
4
IMX10B4HV0375M EP7020

Unit: inch

DC
0.375
APMX
0.395
LU
0.395
LH
0.63
OAL
1.146
DCONMS
0.363
RE
0.1875
FHA
45.0
ZEFP
4
ZEFF
4
